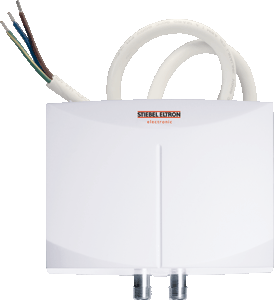

Mini-E Thermostatic Handwashing Sink Electric Tankless Water Heaters

product-bullets-and-image

  •  Code-compliant thermostatic control
  •  Factory set at 100°F
  •  Adjustable temperature output between 86–120°F
  •  Custom temperature settings available
  •  Same extremely compact design as mechanical Mini
  •  Pre-wired pigtail included
  •  Major energy savings
  •  Unlimited supply of hot water
  •  Proven reliability
  •  Sleek design is appealing and can be mounted in plain sight
  •  Can be mounted with fittings pointing up or down
  •  Mini-E models are suitable for booster applications, accepting a maximum incoming water temperature of 122 °F (50 °C).

product-body

Small & Reliable Water Heating for Handwashing

The Stiebel Eltron Mini tankless water heaters are designed for installation at the point-of-use. The Mini heats water instantaneously as it flows through the unit. Stand-by heat-losses are completely eliminated. The efficient heating elements are controlled by a simple flow switch. Additionally, all Mini water heaters are equipped with a safety high-limit with manual reset.

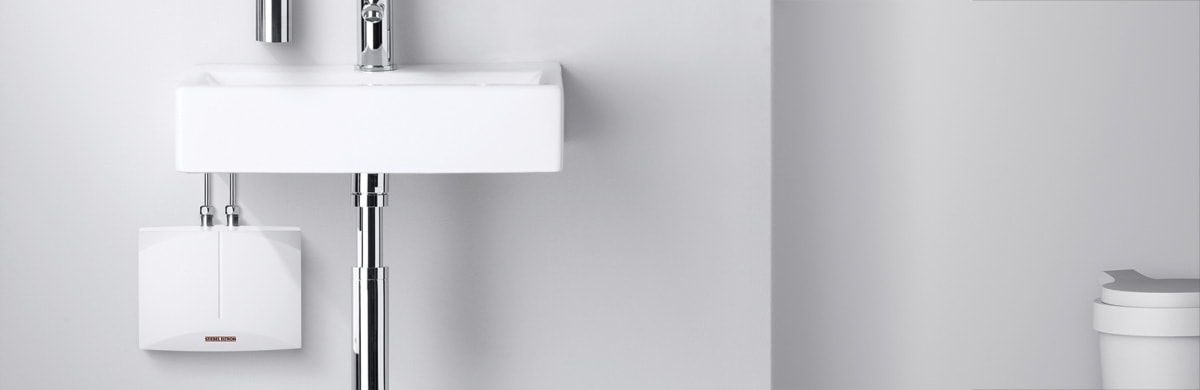

Mini Point-of-Use Under Sink Installation

Thermostatic Mini-E Models

Mini-E thermostatic tankless water heaters are the new electronically controlled version of our famous Mini tankless electric water heaters for handwashing.

The thermostatic electronic control gives them additional features beyond the capabilities of the mechanical Mini models.

Code-compliant hot water output

The electronic control board in conjunction with an automatic flow rate control allow Mini-E models to come factory set to deliver water at 100°F. They will maintain an accurate outlet water temperature, even if there are pressure fluctuations in the water supply. This makes them eligible for installation where output temperatures must be limited by code.

Adjustable output temperatures

Mini-E models are factory set to deliver water at 100°F, but orders can be placed for factory adjustment at custom temperatures. Please inquire regarding specific needs. A Mini-E can also be field adjusted by the installer and secured to the new setting.

Multiple sink capability

Mini-E model 6-2 can be plumbed to supply warm water for hand washing to two sinks in warm climates.

Simply the Best

The efficient heating elements are controlled by a flow switch. Additionally, all Mini water heaters are equipped with a safety high-limit with manual reset. The combination of meticulous German engineering and the best available materials ensures that every Mini is of the highest quality. They have been designed for many years of trouble-free service. Installation after installation has proven they have the lowest failure rates of any tankless water heaters in the industry. Nobody can compare with our exceptional reliability record and customer support services!

Easy Installation

Simple and easy to install, Mini water heaters can be located above or below the fixture with water connections pointing up or down. No pressure relief valve, drains, or circulating pumps are needed.

Easy to Size for Point-of-Use Applications

Sizing Guide Map

Mini can deliver warm or hot water to a single point-of-use, usually a hand wash or utility sink. Click the map for the full Sizing Guide.

Call Stiebel Eltron at 800.582.8423 if you have any sizing questions, or if you have any out-of-the-ordinary situation. Stiebel Eltron service representatives can make recommendations on sizing, or provide assistance with our water heaters, to both homeowners and professional installers.

Low flow = big savings

Flow controls and faucet aerators are highly recommended in conjunction with tankless water heaters. The Mini-E 2-1 is internally restricted to 0.40 GPM. The Mini-E 2-1, 2.5-1, 3-1, 3.5-1 and 4-2 models ship with a 0.5 GPM pressure compensating flow reducer / aerator. The Mini-E 6-2 model ships with two 0.5 GPM aerators. Substitute a 1.0 GPM pressure compensating flow-reducer/aerator if plumbed to 1 sink. All aerators are designed to fit most common faucets. No pressure relief valve, drains, or circulating pumps are needed.

Applications

Mini-E Tankless Internal Labeled

The Stiebel Eltron Mini tankless water heaters are ideal for restrooms or kitchenettes in an office or commercial / industrial setting.

  •  Office Buildings
  •  Gas Stations
  •  Stores
  •  Schools
  •  Malls
  •  Hotels / Motels
  •  Warehouses
  •  Commercial Condominiums
  •  Restaurants
  •  Manufacturing Facilities

In a residential setting, they are suited for the following applications:

  •  Bathroom Sinks
  •  Kitchen Sinks
  •  Laundry Areas
  •  Small Cabins
  •  Boats / RVs
