Mini™ Single Handwashing Sink Electric Tankless Water Heaters

product-bullets-and-image

  •  Extremely compact design saves space
  •  Major energy savings
  •  Unlimited supply of hot water
  •  Proven reliability
  •  Sleek design is appealing and can be mounted in plain sight
  •  Can be mounted with fittings pointing up or down
  •  Pre-wired pigtail included
  •  Only 7.5″ x 6.5″ !

product-body

Small is big!

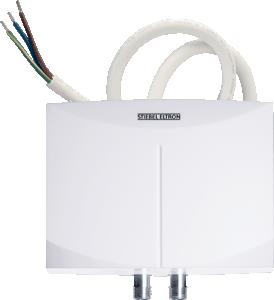

The Stiebel Eltron Mini™ tankless water heaters are designed for installation at the point-of-use, or under the sink. The Mini™ heats water instantaneously as it flows through the unit. Stand-by heat-losses are completely eliminated. The efficient heating elements are controlled by a simple flow switch. Additionally, all Mini™ water heaters are equipped with a safety high-limit with manual reset.

DHC Point-of-Use Under Sink Installation

Simply the best

The combination of meticulous German engineering and the best available materials ensure that every Mini™ is of the highest quality and designed for many years of trouble-free service. Nobody can compare with our exceptional reliability record and customer support services!

Easy to Size for Point-of-Use Applications

Sizing Guide Map

Mini™ can deliver warm or hot water to a single point-of-use, usually a hand wash or utility sink. Click the map for the full Sizing Guide.

Call Stiebel Eltron at 800.582.8423 if you have any sizing questions, or if you have any out-of-the-ordinary situation. Stiebel Eltron service representatives can make recommendations on sizing, or provide assistance with our water heaters, to both homeowners and professional installers.

Low flow = big savings

Flow controls and faucet aerators are highly recommended in conjunction with tankless water heaters. The Mini™ 2-1 is internally restricted to 0.32 GPM. The Mini™ 2-1, 2.5-1 and 3-1 models ship with a 0.5 GPM pressure compensating flow reducer / aerator. The Mini™ 3.5-1 and 4-2 models ship with a 0.66 GPM pressure compensating flow reducer / aerator. The Mini™ 6-2 model ships with a 1.0 GPM aerator. All aerators are designed to fit most common faucets. No pressure relief valve, drains, or circulating pumps are needed.

Applications

Mini™ Tankless Internal Labeled

The Stiebel Eltron Mini™ tankless water heaters are ideal for restrooms or kitchenettes in an office or commercial / industrial setting.

  •  Office Buildings
  •  Gas Stations
  •  Stores
  •  Schools
  •  Malls
  •  Hotels / Motels
  •  Warehouses
  •  Commercial Condominiums
  •  Restaurants
  •  Manufacturing Facilities

In a residential setting, they are suited for the following applications:

  •  Bathroom Sinks
  •  Kitchen Sinks
  •  Laundry Areas
  •  Small Cabins
  •  Boats / RVs
